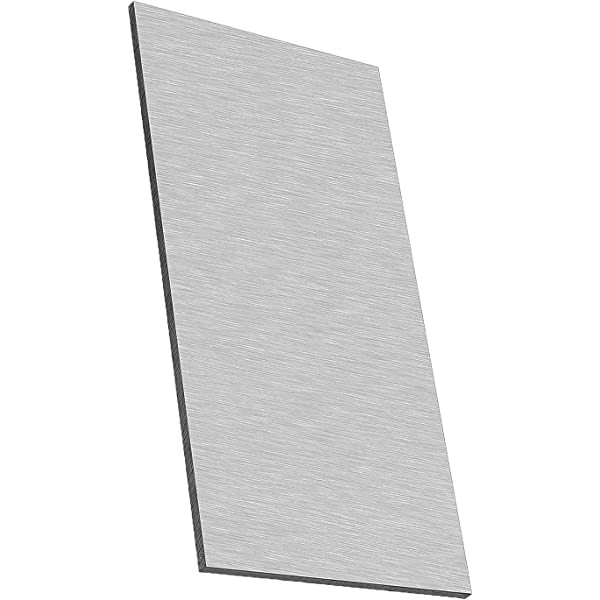

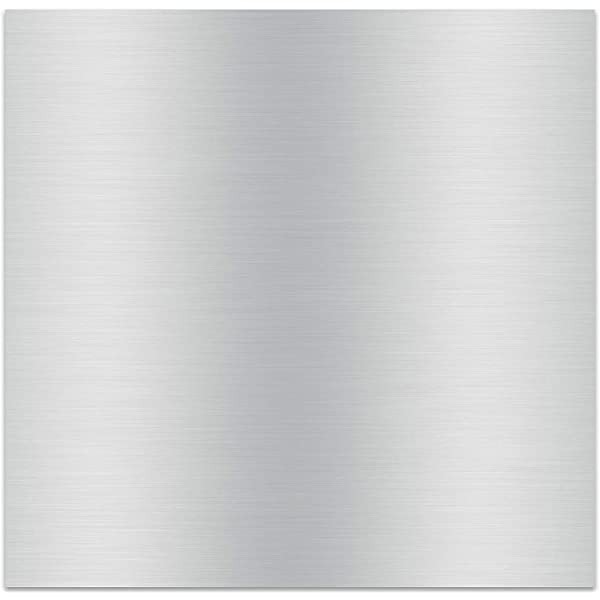

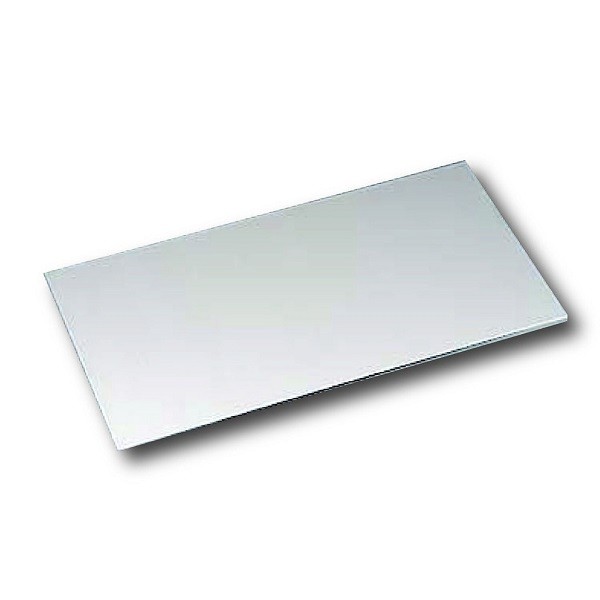

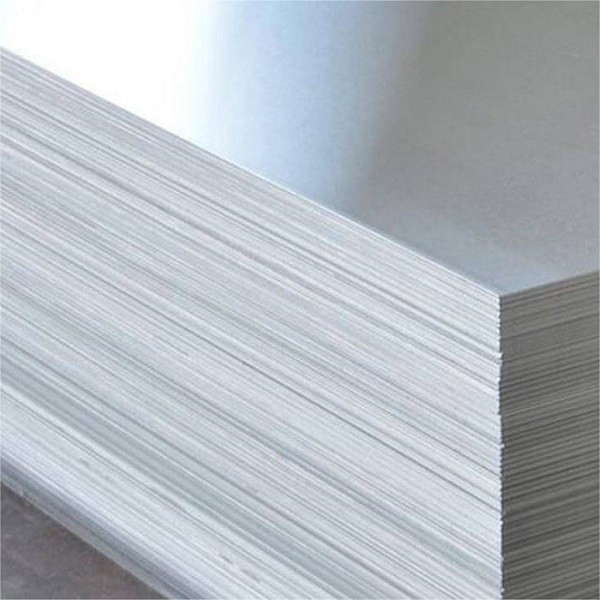

aluminum plate

Category： Aluminium sheet
Standard: ASTM, B209, JIS H4000-2006,GB/T2040-2012,etc
Temper: O/H111 H112 H116/H321 H12/H22/H32 H14/H24/H34/H16/H26/H36 H18/H28/H38 H114/H194, etc.
Width: 20-2650mm
Thickness: 0.15-25mm
Product description：Aluminum Plate Applications. Aluminum sheet can be widely used in the following fields: 1.Lighting. 2.Solar reflector plate 3.Architectural appearance 4.Interior decoration,ceiling, furniture,cab

INQUIRY

Aluminum Plate

Grade: 1000 - 8000 Series

Temper: O/H111 H112 H116/H321 H12/H22/H32 H14/H24/H34/H16/H26/H36 H18/H28/H38 H114/H194, etc.

Width: 20-2650mm or as the customer's request

Thickness: 0.15-25mm

Length: as the customer's request

Application: Industry, Automotive

Standard: ASTM, B209, JIS H4000-2006,GB/T2040-2012,etc

Packing: Export standard wooden pallets (as per requirements)

Physical Properties
Grade	Hardness	Tensile Strength	Yield Strength	Elongation(%)
Grade	Hardness	(MPa)	(MPa)	0.25-1.25mm	1.26-3.0mm
1100	O	89.6	34.5	30	6
	H12	110.3	103.4	4	12
	H14	124.1	117.2	3	10
2024	O	186.2	75.8	18	20
	T3	482.6	344.7	16	18
	T4	468.8	324.1	20	19
3003	O	110.3	41.4	30	33
	H12	131	124.1	9	11
	H14	151.7	144.8	3	7
5052	O	193.1	89.6	20	21
	H32	227.5	193.1	7	10
	H34	262	213.7	6	8
5083	O	275.8	144.8	21	25
	H32	282.7	151.7	20	21
	H34	330.9	255.1	11	14
6061	O	124.1	55.2	25	26
	T4	241.3	144.8	22	24
	T6	310.3	275.8	12	17
