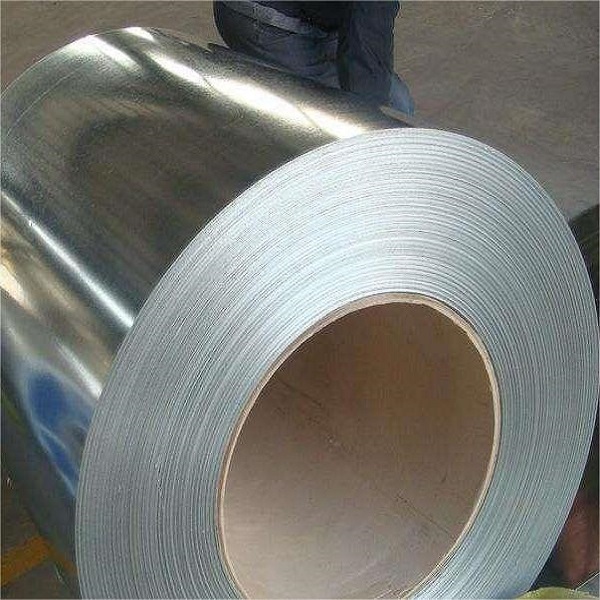

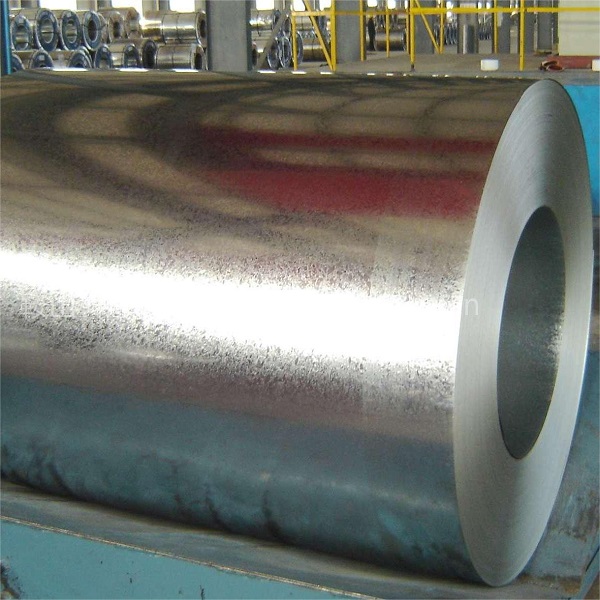

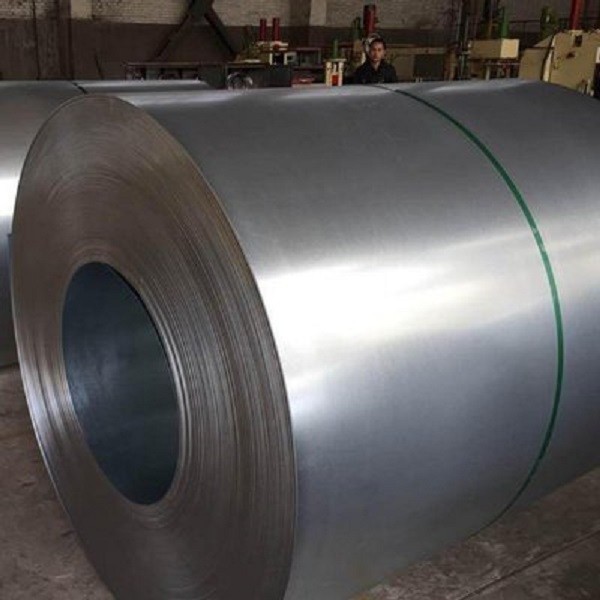

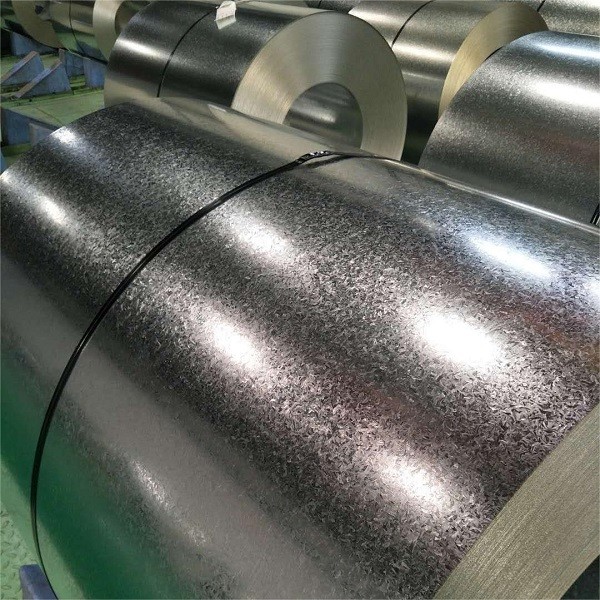

Hot Dip Galvanized Steel Coil

Category： Galvanized steel coil
Standard: AiSi, ASTM, bs, DIN, GB, JIS
Grade: Spcc Secc Dx51d Dx52d Dx53d
Type: Steel Coil, Galvanized Steel Sheet
Surface Treatment: galvanized
Product description：Hot-dip galvanizing is the reaction of molten metal with an iron substrate to produce an alloy layer, thereby combining the substrate and the plating layer. Hot-dip galvanizing is to pickle iron and

INQUIRY

Product Specifications

Technical Standard	EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
Steel Grade	Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement
Type	Coil/Sheet/Plate/Strip
Thickness	0.12-6.00mm,or customer's requirement
Width	600mm-1500mm, according to customer's requirement
Type of Coating	Hot Dipped Galvanized Steel(HDGI)
Zinc Coating	30-275g/m2
Surface Treatment	Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U)
Surface Structure	Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
Quality	Approved by SGS,ISO
ID	508mm/610mm
Coil Weight	3-20 metric ton per coil
Package	Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement
Export market	Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, e
